We will research a number of beyond the state-of-the-art cooling system implementations and evaluate their performance under coolant conditions that would achieve acceptable life. We will research the innovative inclusion of transpiration cooling into jet engine turbine stage components and high endurance porous ceramics for hypersonic vehicles.

Within the spectrum of cooling systems considered, there are several permutations of cooling technology. Our work will enable us to rank such systems and inform their introduction by our colleagues in future jet engines and hypersonic vehicles. This over-arching aim will set the context of our work and keep the partners focussed on delivering real system benefits.

Develop innovative porous materials

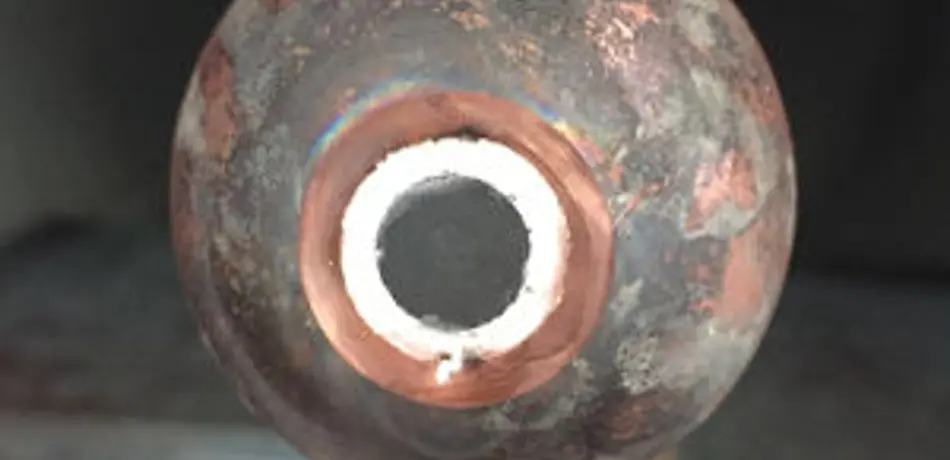

We will investigate hybrid methods of manufacturing super-alloy turbine blades and develop porous ceramic materials that achieve different porosities. For turbine blading, our starting point will be fabricated double skin systems implemented with machining and brazing. This work will utilise the new High Temperature Research Centre at Anstey to deliver rapid high quality castings and process innovation. We will research Ultra High Temperature Ceramics (UHTCs ) to include controlled porosity to be used with transpiration cooling for specific application to hypersonic vehicles. These UHTCs are capable of operating at temperatures over 2200 K well in excess of carbon composites investigated to date for hypersonic transpiration cooling, building upon work from the Materials Systems for Extreme Environments programme. For both solution, the challenge will be to maintain the excellent thermal and structural properties whilst moving to high porosity.

Post from RICOH THETA. - Spherical Image - RICOH THETA

The High Density Tunnel at The University of Oxford, part of the National Wind Tunnel Facility

Provide experimental verification of cooling performance at flight conditions

We will perform experiments to study the success of selected transpiration systems. This research will take advantage of transient experimental techniques developed at University of Oxford to measure heat transfer, metal effectiveness and film cooling effectiveness while matching flight or engine non-dimensional flow properties and geometries. For turbine blades, the research will combine metal parts with scaled take-off conditions achieving simulation of film to gas density ratio using foreign gas or engine gas to coolant temperature ratio. For hypersonic vehicles, we will couple the high speed conditions achievable in the short duration facilities at University of Oxford (part of the National Wind Tunnel Facility, NWTF), with directly heated transpiration cooled porous models. In parallel, testing will be performed at the long duration facilities at Stuttgart University to achieve thermal equilibrium at correct heat fluxes- without simulating the flow field.

Develop methods for predicting transpiration cooling performance

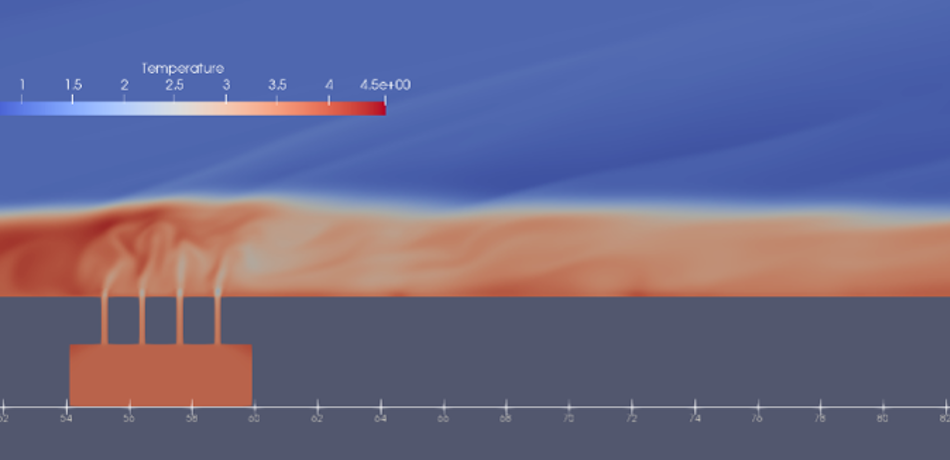

Our research will combine experiments in the high speed facilities at the Osney Thermofluids Lab whilst simultaneously advancing CFD methods to provide a full understanding of transpiration cooling and design capability. A multi-scale approach will be used to develop numerical methods to model and understand the basis and the implementation of transpiration cooling. This research will build on the Fourier spectral approach and the Immersed Mesh Block technique developed at the University of Oxford and extend these to conjugate CFD predictions for intricate cooling features. The accuracy of these calculations will be assessed against both fundamental and applied experiments using measured specific thermal properties.

Develop numerical models to predict life of candidate transpiration cooling systems

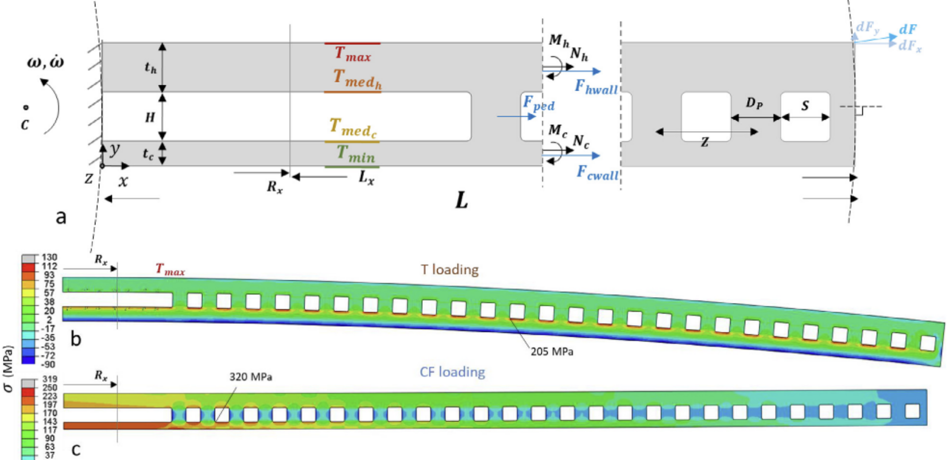

We will develop an in-depth understanding of potential failure mechanisms in the different types of transpiration system covered by this grant and evaluate the degree to which direct and indirect computational procedures can be employed to facilitate their design and optimisation. By combining analytical and numerical models with selected tests, we aim to determine the key mechanical and physical material properties required for materials to be used in future transpiration systems.

Research transpiration-class film cooling flow mixing

We aim to develop a complete understanding of the flow parameters that determine flow mixing for films in transpiration cooling. This research will use large scale experiments in a NWTF wind tunnel at Imperial College and advanced laser diagnostics to provide information into cooling film development in the turbulent boundary layer at unprecedented spatial resolution. The idealised experiments will match the important dimensionless groups and provide fundamental understanding and validation data for turbulence and flow mixing modelling.

Research Programme and Methodology

The project is broken into work packages (WP) that are investigating specific areas as follows:

WP1 – Porous Material Development, Manufacture & Characterisation

This WP will develop porous, high temperature materials for aerothermal tests; provide understanding and measurements of both fundamental and derived properties; characterise material properties such as thermal conductivity, yield strength and flow porosity at elevated temperatures. This WP is primarily being undertaken by Imperial College London and Birmingham University.

WP2 – Flow & Heat Transfer Understanding

This research will investigate the complex interaction of the injected cooling flow with the oncoming flow field via advanced, laser based, experimental diagnostics; provide key data to validate numerical methods and give vital insight into the turbulent mixing processes. This WP is primarily being undertaken by Oxford University and Imperial College London.

WP3 – Measurement of Cooling Performance

This WP will provide the understanding of the cooling processes and evaluate the performance of porous cooled systems designed to reduce heat flux; investigate the mechanisms used to reduce heat flux by applying a variety of advanced measurement techniques; provide applied heat flux data for validation of numerical calculations and direct data for assessment for flight. This WP is primarily being undertaken by Oxford University.

WP4 – Numerical Modelling of Fluid/Structure

This WP will develop numerical methods to provide system predictability using experimental data from WP1, WP2 and WP3; investigate mixing and heat flux mechanisms in greater detail than can be obtained experimentally, using experimental data for validation application of advanced simulation methods to deal with disparity in geometric scaling. This WP is being carried out by Southampton University and Oxford University.
